Product Details:
Payment & Shipping Terms:
|
| Power Type: | Diesel | Overall Dimension(without Fork): | 3560x2010x2500mm |
|---|---|---|---|
| Service Weight: | 9750mm | Rated Load: | 7000kgs |
| Load Center: | 600mm | Lift Height: | 3000mm |
| Wheelbase: | 2250mm | Fork Size: | 1220x150x70mm |
| Engine: | ISUZU | Transmission: | Hydraulic |
| High Light: | SLD 7 Ton Diesel Powered Forklift,FD70 Diesel Forklift,FD70 15000 Lb Forklift |
||

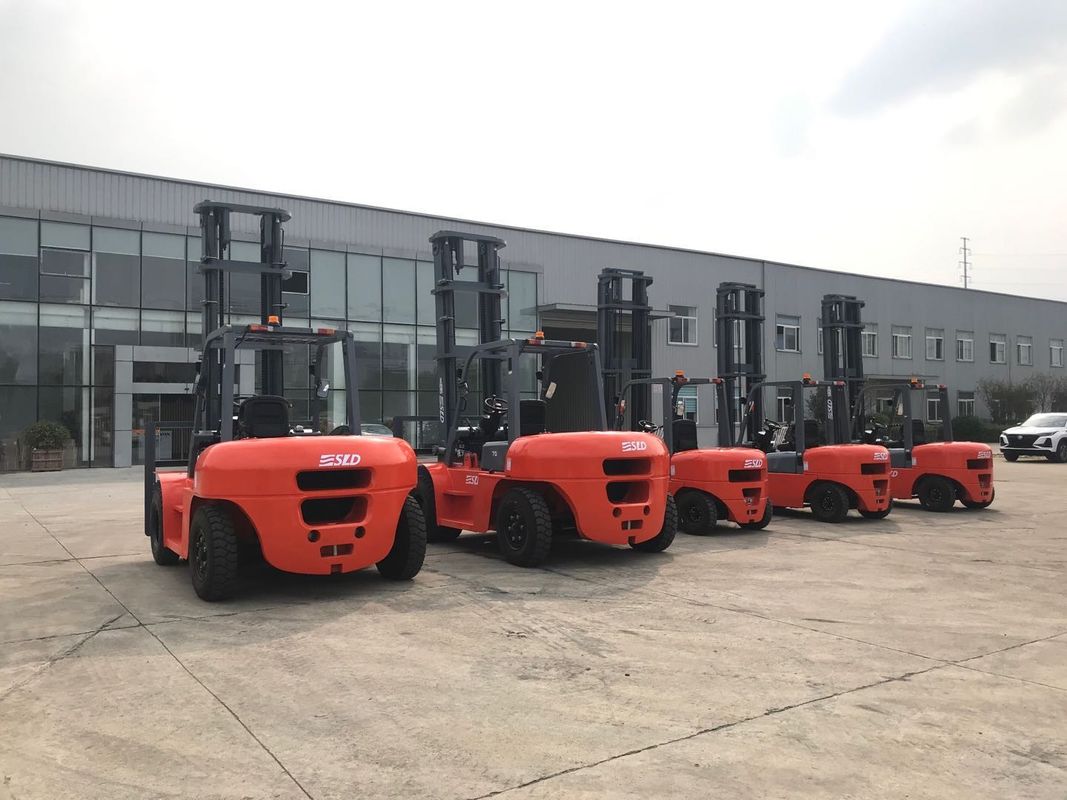

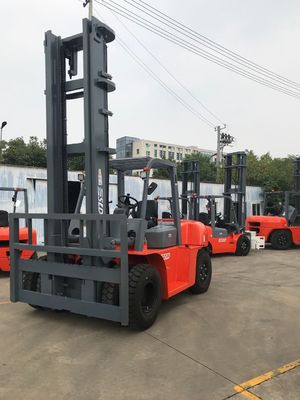

Best Price 7 Tons Diesel Forklift Truck With Solid Tires With Mast Lifting Height 5000mm
Main Parts of 7 Ton Diesel Forklift
| Engine | It is the power unit of the forklift truck, which converts thermal energy into mechanical energy. |
| Transmission Gear | It includes clutch, transmission, main transmission, differential mechanism, axle shaft, etc. |
| Operating Control | It consists of steering mechanism and brake system. |
| Working Device | It includes inside and outside door frame, fork mounting, pallet fork, lifting chain, roller, pulley and other parts. Its role is to lift or stack cargoes. |
| Hydraulic System | It includes fuel tank, hydraulic pump, distributor, lifting hydraulic cylinder and tilt cylinder. It can realize lifting and tilting of cargoes. |
| Electric System | It consists of power section and the electric part, such as storage battery, alternator, starter motor, ignition device, illumination device and loudspeaker. |
|
General |
|
|
|
|
|
|
|
Model |
|
FD50 |
FD60 |
FD70 |
FD80 |
|
|
Power Type |
|
Diesel |
Diesel |
Diesel |
Diesel |
|
|
Load Capacity |
kg |
5000 |
6000 |
7000 |
8000 |
|
|
Load centre |
mm |
600 |
600 |
600 |
600 |
|
|
Tyre |
|
|
|
|
|
|
|
Tyre |
|
|
Pneumatic Tyre |
Pneumatic Tyre |
Pneumatic Tyre |
Pneumatic Tyre |
|
Front Tyre |
|
8.25-15-14PR |
8.25-15-14PR |
8.25-15-14PR |
8.25-15-18PR |
|
|
Rear Tyre |
|
8.25-15-14PR |
8.25-15-14PR |
8.25-15-14PR |
8.25-15-18PR |
|
|
Overall Dimension |
|
|
|
|
|
|
|
Lift Height |
mm |
3000 |
3000 |
3000 |
3000 |
|
|
Fork Size |
L×W×T |
mm |
1220×150×60 |
1220×150×60 |
1220×150×70 |
1220×150×70 |
|
Mast Tilt Angle |
F/R |
. |
6/12 |
6/12 |
6/12 |
6/12 |
|
Mast Lowered Height |
mm |
2500 |
2500 |
2500 |
2500 |
|
|
Mast Extended Height(with backrest) |
mm |
4415 |
4415 |
4415 |
4415 |
|
|
Length to face of fork(Without fork) |
mm |
3450 |
3450 |
3560 |
3560 |
|
|
Overall Width |
mm |
2010 |
2010 |
2010 |
2010 |
|
|
Overhead Guard Height |
mm |
2470 |
2470 |
2470 |
2470 |
|
