Product Details:
Payment & Shipping Terms:
|
| Power Type: | Diesel | Overall Dimension(without Fork): | 3560x2010x2500mm |
|---|---|---|---|
| Service Weight: | 9750mm | Rated Load: | 7000kgs |
| Load Center: | 600mm | Lift Height: | 3000mm |
| Wheelbase: | 2250mm | Fork Size: | 1220x150x70mm |
| Engine: | ISUZU | Transmission: | Hydraulic |
| Highlight: | Isuzu Engine Forklift,FD70 6000mm Forklift,FD70 Forklift Machine |
||

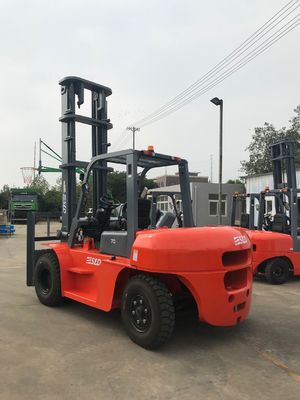

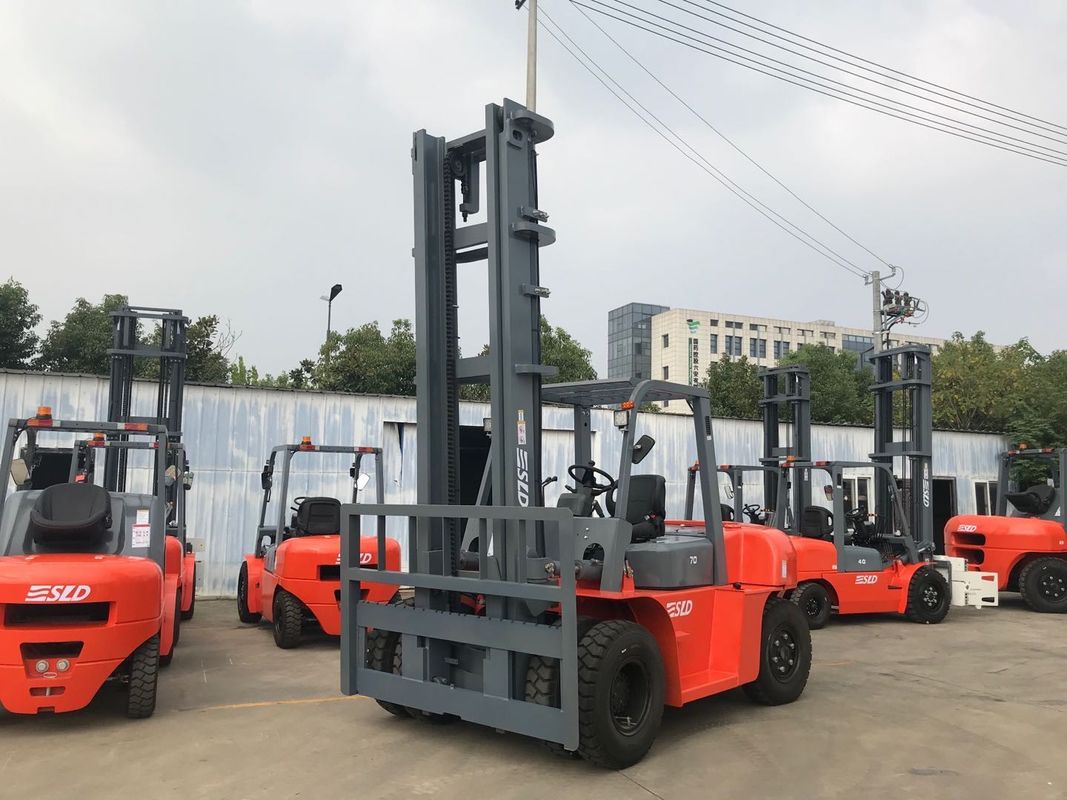

Brand New 7.0 Ton Diesel Forklift Truck With Isuzu Engine With Mast Lifting Height 6000mm
7 tons diesel forklift is very famous for its safety, comfort, environmental protection, good stability and flexible utility. This diesel forklift truck is often used to lift and transport cargoes in the outdoors.
Compared with gasoline engine, diesel engine enjoys the advantages of better power performance and low fuel charge. The engine is not easy to flame out even at low speed. It owns strong overload capacity and long-term working capacity. The 7 ton diesel forklift is equipped with 6.494L ISUZU engines, power shift T/M transmissions as well as advanced hydraulic and cooling system.
Main Parts of 7 Ton Diesel Forklift
| Engine | It is the power unit of the forklift truck, which converts thermal energy into mechanical energy. |
| Transmission Gear | It includes clutch, transmission, main transmission, differential mechanism, axle shaft, etc. |
| Operating Control | It consists of steering mechanism and brake system. |
| Working Device | It includes inside and outside door frame, fork mounting, pallet fork, lifting chain, roller, pulley and other parts. Its role is to lift or stack cargoes. |
| Hydraulic System | It includes fuel tank, hydraulic pump, distributor, lifting hydraulic cylinder and tilt cylinder. It can realize lifting and tilting of cargoes. |
| Electric System | It consists of power section and the electric part, such as storage battery, alternator, starter motor, ignition device, illumination device and loudspeaker. |
|
General |
|
|
|
|
|
|
|
Model |
|
FD50 |
FD60 |
FD70 |
FD80 |
|
|
Power Type |
|
Diesel |
Diesel |
Diesel |
Diesel |
|
|
Load Capacity |
kg |
5000 |
6000 |
7000 |
8000 |
|
|
Load centre |
mm |
600 |
600 |
600 |
600 |
|
|
Tyre |
|
|
|
|
|
|
|
Tyre |
|
|
Pneumatic Tyre |
Pneumatic Tyre |
Pneumatic Tyre |
Pneumatic Tyre |
|
Front Tyre |
|
8.25-15-14PR |
8.25-15-14PR |
8.25-15-14PR |
8.25-15-18PR |
|
|
Rear Tyre |
|
8.25-15-14PR |
8.25-15-14PR |
8.25-15-14PR |
8.25-15-18PR |
|
|
Overall Dimension |
|
|
|
|
|
|
|
Lift Height |
mm |
3000 |
3000 |
3000 |
3000 |
|
|
Fork Size |
L×W×T |
mm |
1220×150×60 |
1220×150×60 |
1220×150×70 |
1220×150×70 |
|
Mast Tilt Angle |
F/R |
. |
6/12 |
6/12 |
6/12 |
6/12 |
|
Mast Lowered Height |
mm |
2500 |
2500 |
2500 |
2500 |
|
|
Mast Extended Height(with backrest) |
mm |
4415 |
4415 |
4415 |
4415 |
|
|
Length to face of fork(Without fork) |
mm |
3450 |
3450 |
3560 |
3560 |
|
|
Overall Width |
mm |
2010 |
2010 |
2010 |
2010 |
|
|
Overhead Guard Height |
mm |
2470 |
2470 |
2470 |
2470 |
|
