Product Details:
Payment & Shipping Terms:
|
Power Type: | Diesel | Overall Dimension(without Fork): | 3245x1430x2270mm |
---|---|---|---|
Service Weight: | 6480mm | Rated Load: | 4000kgs |
Load Center: | 500mm | Lift Height: | 3000mm |
Wheelbase: | 2100mm | Fork Size: | 1070x150x55mm |
Engine: | ISUZU | Transmission: | Hydraulic |
Highlight: | FD40 Counterbalance Pallet Stacker,SLD 8k Forklift,FD40 4T Forklift |

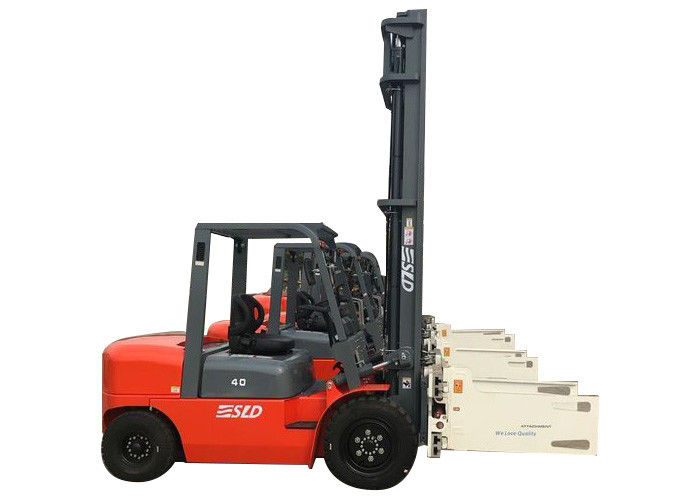

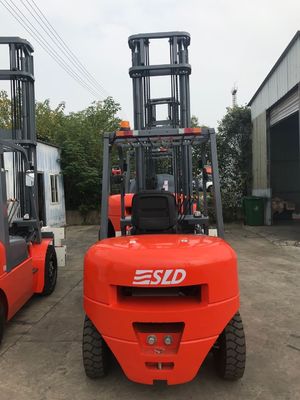

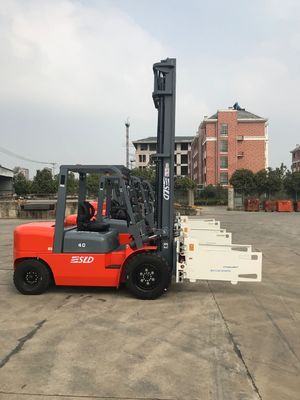

4.0 Ton Diesel Forklift Forklift With ISUZU Engine With Mast Lifting Height 6000mm
Components
4.0T diesel counterbalance forklift truck is mainly composed of engine, transmission, operating control device, working device (inside and outside door frame, fork mounting, pallet fork, lifting chain, roller, pulley and others), hydraulic system and electrical system.
General |
|
|
|
|
|
Model |
|
FD40T |
FD45 |
FD50 |
|
Power Type |
|
Diesel |
Diesel |
Diesel |
|
Load Capacity |
kg |
4000 |
4500 |
5000 |
|
Load centre |
mm |
500 |
500 |
500 |
|
Tyre |
|
|
|
|
|
Tyre |
|
|
Pneumatic Tyre |
Pneumatic Tyre |
Pneumatic Tyre |
Front Tyre |
|
250-15-16PR |
300-15-18PR |
300-15-18PR |
|
Rear Tyre |
|
6.50-10-10PR |
7.00-12-12PR |
7.00-12-12PR |
|
Overall Dimension |
|
|
|
|
|
Lift Height |
mm |
3000 |
3000 |
3000 |
|
Fork Size |
L×W×T |
mm |
1070×125×50 |
1070×150×55 |
1070×150×55 |
Mast Tilt Angle |
F/R |
. |
6/12 |
6/12 |
6/12 |
Mast Lowered Height |
mm |
2195 |
2330 |
2330 |
|
Mast Extended Height(with backrest) |
mm |
4180 |
4165 |
4165 |
|
Length to face of fork(Without fork) |
mm |
2890 |
3245 |
3245 |
|
Overall Width |
mm |
1410 |
1430 |
1430 |
|
Overhead Guard Height |
mm |
2120 |
2340 |
2340 |
