Product Details:
Payment & Shipping Terms:
|
Power Type: | LPG&Gasoline | Rated Load: | 3500kgs |
---|---|---|---|
Load Center: | 500mm | Lifting Height: | 3000mm |
Overall Diamension: | 2730x1225x2115mm | Fork Size: | 1070x125x45mm |
Wheelbase: | 1700mm | Service Weight: | 4800 Kgs |
Engine: | Nissan | Transmission Type: | Hydraulic |
Highlight: | Lp Gas Forklift,FY35 Forklift,FY35 gas powered forklift |

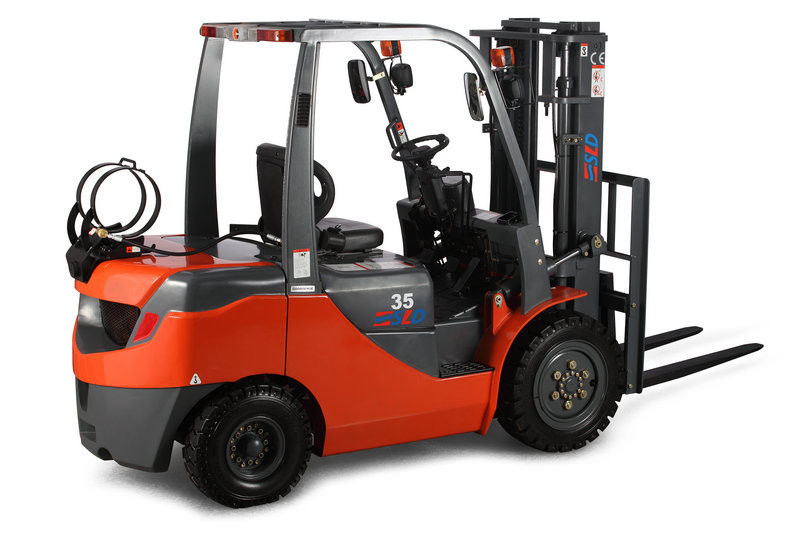

Lifting Capacity 3.5 Ton LPG&Gasoline Dual Fuel Forklift More Enviromental With Powershift Hydraulic Transmission
Description
General |
|
|
|
|
Model |
|
FY30 |
FY35 |
|
Power Type |
|
LPG&Gasoline |
LPG&Gasoline |
|
Drive Type |
|
Sit |
Sit |
|
Load Capacity |
kg |
3000 |
3500 |
|
Load centre |
mm |
500 |
500 |
|
Tyre |
|
|
|
|
Tyre Type |
|
|
Pneumatic Tyre |
Pneumatic Tyre |
Front Tyre |
|
28*9-15-12PR |
28*9-15-12PR |
|
Rear Tyre |
|
6.50-10-10PR |
6.50-10-10PR |
|
Overall Dimension |
|
|
|
|
Lift Height |
mm |
3000 |
3000 |
|
Fork Size |
L×W×T |
mm |
1070*125*45 |
1070*125*50 |
Mast Tilt Angle |
F/R |
. |
6/12 |
6/12 |
Mast Lowered Height |
mm |
2115 |
2115 |
|
Mast Extended Height(with backrest) |
mm |
4175 |
4150 |
|
Length to face of fork(Without fork) |
mm |
2710 |
2750 |
|
Overall Width |
mm |
1225 |
1225 |
|
Overhead Guard Height |
mm |
2090 |
2090 |
With good performance, gasoline/LPG forklift truck is suitable for loading heavy cargoes. In consideration of exhaust gas emission and noise problem, this counterbalance forklift truck is often used in the outdoors. The gasoline engine is characterized by small dimension, light weight, high output power, low noise, small vibration and low price.
