Product Details:
Payment & Shipping Terms:
|
| Power Type: | Diesel | Rated Load: | 3500kgs |
|---|---|---|---|
| Load Center: | 500mm | Lift Height: | 3000mm |
| Wheelbase: | 1700mm | Service Weight: | 4500mm |
| Overall Dimension(without Fork): | 2770x1225x2175mm | Fork Size: | 1070x125x50mm |
| Engine: | ISUZU Or YANMAR | Transmission: | Hydraulic |
| High Light: | FD35 Forklift,3.5 ton forklift,Pneumatic Tire Lift |
||

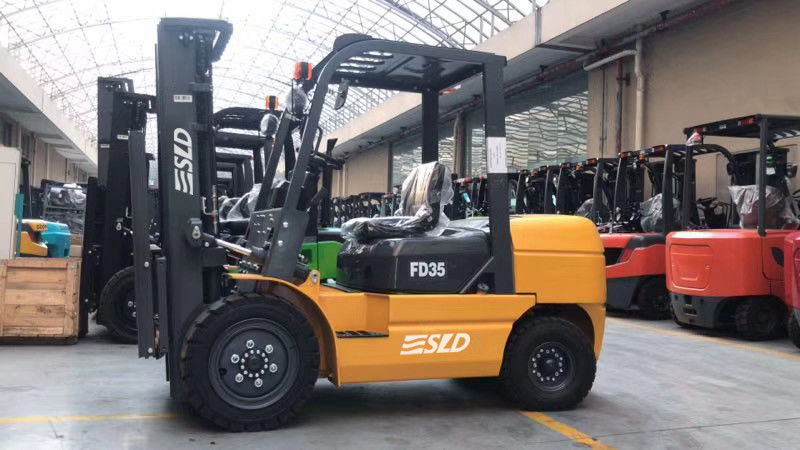

Pneumatic Or Solid Tire FD35 Counterbalance Diesel Forklift Truck 3.5 Tons Option ISUZU 4JGP Engine

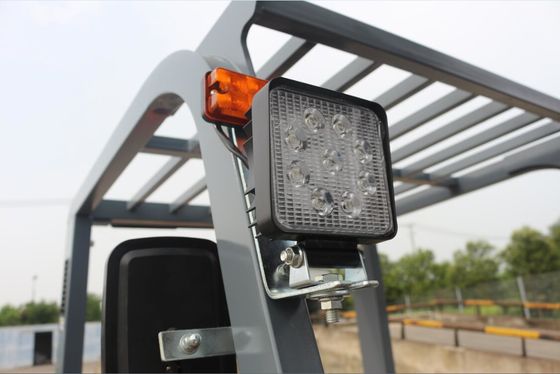

Standard configuration: Japan ISUZU 4JG2 engine , hydraulic transmission, standard 2 stage mast lifting height 3000mm, fork length 1070mm, pneumatic tires, overhead guard, warning light etc.
Options: Chinese engine or Yanmar engine, solid tires, full cabin with A/C, triplex mast higher lifting height etc.
3.5 Ton Internal Combustion Forklift Truck advantages:

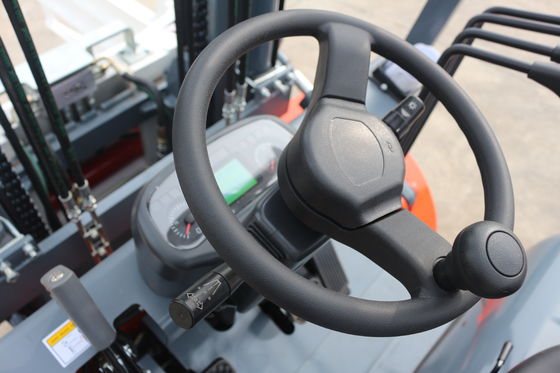

1. Super comfortable: forklifts are all with comfortable driving space,adjustable steering wheel and seats,super low and non-slip step,suspension steering axle,storing space,and convenient LCD panel.
2. Power System: forklifts are all with reliable power accessories,like Mitsubishi Engine. All accessories are support by domestic and world famous brand, high quality, reliable after-sales.We follow the strict environmental design,all engines match the China Ⅲ or even higher emission standards.
3. Forklift can equip with different attachments according to your need.
|
General |
|
|
|
|
|
Model |
|
FD30 |
FD35 |
|
|
Power Type |
|
Diesel |
Diesel |
|
|
Load Capacity |
kg |
3000 |
3500 |
|
|
Load centre |
mm |
500 |
500 |
|
|
Tyre |
|
|
|
|
|
Tyre |
|
|
Pneumatic Tyre |
Pneumatic Tyre |
|
Front Tyre |
|
28*9-15-12PR |
28*9-15-12PR |
|
|
Rear Tyre |
|
6.50-10-10PR |
6.50-10-10PR |
|
|
Overall Dimension |
|
|
|
|
|
Lift Height |
mm |
3000 |
3000 |
|
|
Fork Size |
L×W×T |
mm |
1070*125*45 |
1070*125*50 |
|
Mast Tilt Angle |
F/R |
. |
6/12 |
6/12 |
|
Mast Lowered Height |
mm |
2115 |
2115 |
|
|
Mast Extended Height(with backrest) |
mm |
4175 |
4150 |
|
|
Length to face of fork(Without fork) |
mm |
2710 |
2750 |
|
|
Overall Width |
mm |
1225 |
1225 |
|
|
Overhead Guard Height |
mm |
2090 |
2090 |
|
| Travel Speed(Empty load) | km/h | 19 | 19 | |
| Lifting Speed(Full load) | mm/s | 440 | 420 | |

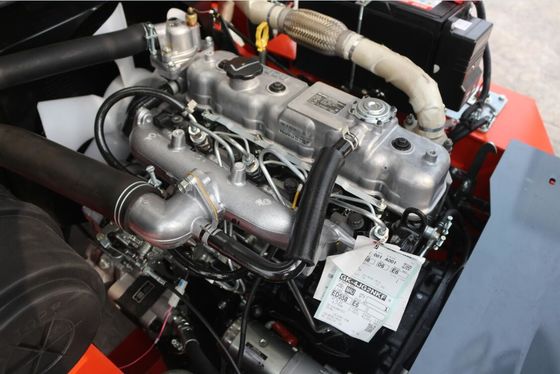

Engine Option
| Item | Manufacture | C/O | Model | No.of Cylinder | Displacement(CC) | Rated Output/r.p.m(kw) | Rated Torque/r.p.m(N.m) | Bore*Stroke |
| 1 | ISUZU | JAPAN | C240NKFC-01 | 4 | 2369 | 35.4/2500 | 137.7/1800 | 86*102 |
| 2 | ISUZU | JAPAN | 4JG2PE-01 | 4 | 3059 | 46/2450 | 184.7/1600-1800 | 95.4*107 |
| 3 | YANMAR | JAPAN | 4TNE98-BQFLC | 4 | 3318 | 42.1/2300 | 177.6-196.3/1700 | 98*110 |
| 4 | MITSUBISHI | JAPAN | S4S | 4 | 3331 | 35.3/2250 | 169/1700 | 94*120 |
| 5 | XINCHAI | CHINA | A498BPG-520 | 4 | 3170 | 45/2500 | 193/1800 | 98*105 |
| 6 | XINCHAI | CHINA | C490BPG-236 | 4 | 2670 | 40/2650 | 160/1800-2000 | 90*105 |
