Product Details:
Payment & Shipping Terms:
|
Color: | Orange Red, Yellow, Customized | New Or Used: | New |
---|---|---|---|
Performance: | Quality Product | OEM: | Customized |
Engine: | Weichai Or CUMMINS | Engine Power: | 192KW |
Transmission: | Hydraulic Powershift | Load Center: | 1250mm |
Rated Load: | 35000kgs | Mast Lifting Height: | 4000mm Or 5500mm |
Fork Length: | 2440X340X125mm | Service Weight: | 42000kgs |
Highlight: | fd350 Forklift Lift Truck,fd350 35ton forklift,forklift 35 ton fd350 |

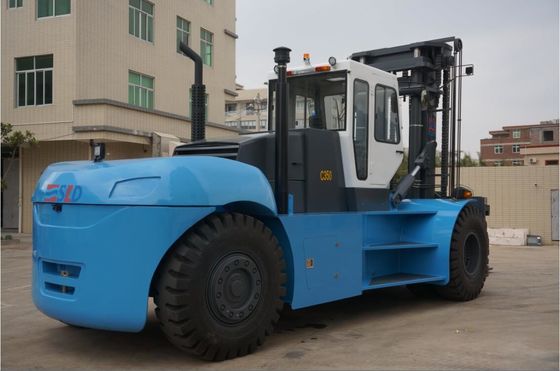

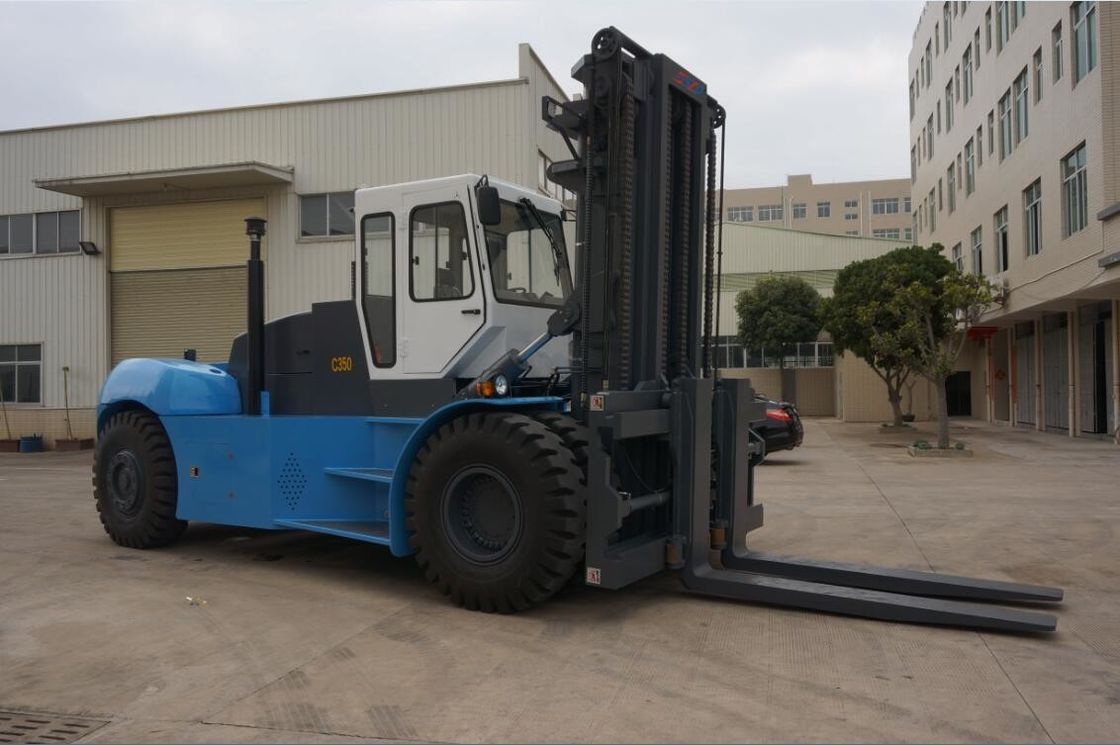

FD350 Loading Capacity 35000kgs Heavy Duty Forklift Truck For Transporting And Stacking Heavy Equipments
Widely used in shipping company, container terminal, logistic yard etc for heavy equipments and heavy containers.
standard mast lifting height 4000mm can stack two layer containers, also can option mast lifting height 5500mm for stacking 3 layer heavy containers. Economical and good use.
Item | Specification | Unit | |||
General | 1 | Model | FD350 | ||
2 | Power Type/model | Diesel | |||
3 | Rated Capacity | Kg | 35000 | ||
4 | Load Center | mm | 1250 | ||
Dimensions | 5 | Lift Height | mm | 4000 | |
6 | Fork size | mm | 2400*300*120 | ||
7 | Mast Tilt Angle(F/R) | deg | 6/12 | ||
8 | Fork Overhang | mm | 1190 | ||
9 | Overall Dimensions | Length without forks | mm | 7240 | |
10 | Overall Width | mm | 3360 | ||
11 | Mast Lowered Height | mm | 4010 | ||
12 | Height to Cabin | mm | 3770 | ||
13 | Min.Outer turning Radius | mm | 6600 | ||
Performance | 14 | Speed | Travel (Unload/Load) | km/h | 28/25 |
15 | Max.Lifting (Unload/Load) | mm/s | 280/260 | ||
16 | Max.gradeability(with Load) | % | 20 | ||
17 | Max.traction(Load) | KN | 220 | ||
18 | Service Weight | kg | 42000 | ||
Wheels&Tires | 19 | Tire | Front | 4×16.00-25-32PR | |
20 | Rear | 2×16.00-25-32PR | |||
21 | Tread | Front | mm | 2430 | |
22 | Rear | mm | 2240 | ||
23 | Wheelbase | mm | 4800 | ||
24 | Min.Ground Clearance(Under mast) | mm | 400 | ||
Power & Transmission | 25 | Battery | Voltage/Capacity(5HR) | VA/h | 2X12/150 |
26 | Engine | Model | WP10G240E341 | ||
27 | Manufacturer | WEICHAI | |||
28 | Rated Output | Kw | 178 | ||
29 | Rated Torque | N.m | 2200 | ||
30 | No.Of Cyinder | 6 | |||
31 | Bore*stroke | mm | 114 | ||
32 | Displacement | L | 8.3 | ||
33 | Transmissions | Model | ZL60 | ||
34 | Gearshift (FWD/RVS) | 2/1 | |||
35 | Operating Pressute | Mpa | 21 |
Note: the above data are subject to change without prior notice.
Main features of FD350 heavy duty forklift truck:
Engine: Adopt Cummins or Weichai turbocharging engine, powerful, energy conservation,environmental protection, satisfies the requirement of high efficiency operation.
Transmission & torque converter: Use hydraulic power shift transmission, big traction in combined operating condition, the transmission system is more reliable.
Adopt double turbine hydraulic torque converter , single lever control for the speed changing, easier for operation.
Driven axle: Reinforced heavy duty type driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Braking system: Use four heavy caliper disc brake, thicken brake disc, the rear air tank. especially have very good thermostability performance when heavy loaded, braking effect stable. heat dissipation faster, reliable and safe operation.
Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.
Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse and longitudinal stability of forklifts. The forklifts get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge and frame.
Tyre: Sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded ,safe and reliable.
Fork: Use Cascade Fork, with hydraulic fork positioner and side shift, easy operation and reduce drivers’ labor intensity.
Mast: Box-type internal-external mast, special all-round roller bearings, increase lifting performance.

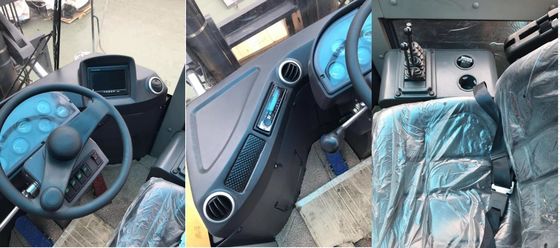

Cab: With air-conditioning , and rupture membrane, explosion proof, heat insulation, prevent glare, sound insulation,damping luxury cab with sunroof, wide view and comfortable seats, flexible control.
