Rated Load: | 15000kgs | Mast Lifting Height: | 3000mm |
---|---|---|---|
Engine: | Yuchai Or CUMMINS | Transmission: | Hydraulic |
Color: | Orange Red,customized | OEM: | Customized |
Load Center: | 600mm | Fork Length: | 1800mm |
Attachments: | Fork, Roll Prong, Tire Prong | Options: | Side Shift, Fork Positioner |
Highlight: | FD150 Forklift Loading Truck,FD150 30k Forklift,FD150 15T Forklift |

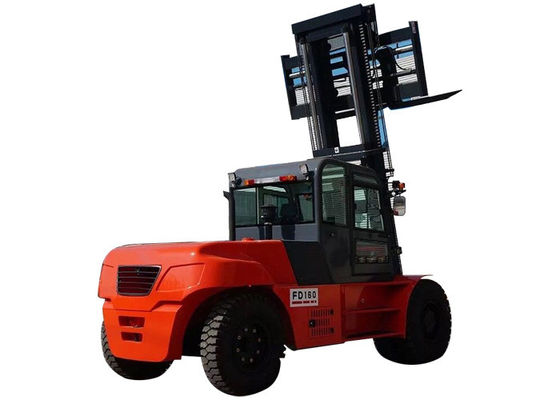

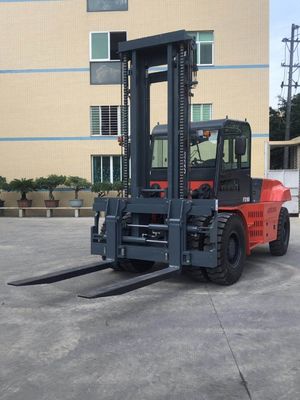

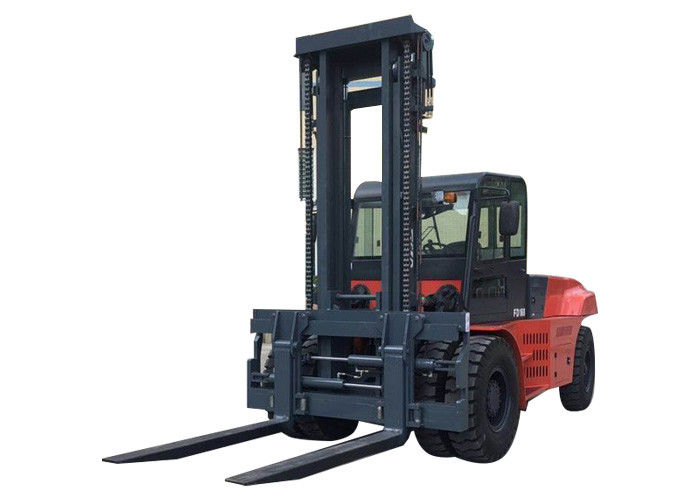

15 Tons 16 Tons Heavy Duty ForkliftTruck Use For Material Handling Best Price Hot Sale
Due to good quality very competitive price and perfect service of 15 tons 16tons disel forklift, they are widely accept by domestic and abroad customers, good working conditions in transport and lifting heavy equipments. It is your best choice.
Parameters: | Vehicle configuration | FD150 | ||
Performance | Rated load | 15000 | ||
Load center | 600 | |||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 7200 | |
Width | mm | 2550 | ||
Height | mm | 3460 | ||
Mast lifting height | mm | 3000 | ||
Fork size (L*W*H) | mm | 1800X200X90 | ||
Min. turning radius | mm | 5050 | ||
Max. travel speed (with load) | Km/h | 22 | ||
Lifting speed (with load) | mm/s | 240 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 17000 | ||
Tyre | Front | 4X12.00-24/20PR | ||
Rear | 2X12.00-20/18PR | |||
Wheel tread | Front | mm | 1850 | |
Rear | mm | 2130 | ||
Wheelbase | mm | 3600 | ||
Min. ground clearance | mm | 270 | ||
Engine | Model | YC6J175-T302 | ||
Rated power | KW | 129 | ||
Max. torque | N.m | 710 |
Note: the above data are subject to change without prior notice.
Main features of 15 tons 16tons disel forklift:
Transmission & torque converter: Use hydraulic power shift transmission, big traction in combined operating condition, the transmission system is more reliable . Adopt double turbine hydraulic torque converter , single lever control for the speed changing, easier for operation.
Transmission & torque converter: Use hydraulic power shift transmission, big traction in combined operating condition, the transmission system is more reliable . Adopt double turbine hydraulic torque converter , single lever control for the speed changing, easier for operation.
Driven axle: Reinforced heavy duty type driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Braking system: Use four heavy caliper disc brake, thicken brake disc, the rear air tank. especially have very good thermostability performance when heavy loaded, braking effect stable. heat dissipation faster, reliable and safe operation.
Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.
Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse and longitudinal stability of forklifts. The forklifts get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge and frame.
Tyre: Sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded ,safe and reliable.
Mast: Box-type internal-external mast, special all-round roller bearings, increase lifting performance.

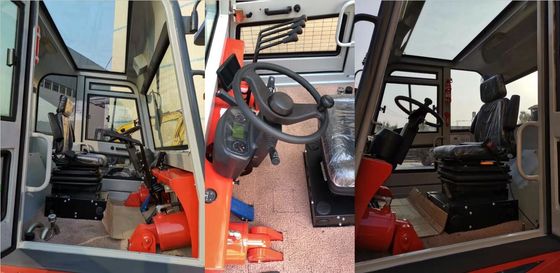

Overhead guard or Cab: Strong roof guard or full cabin with air-conditioning , wide view and comfortable seats, flexible control.
