FD120 3000mm Mast lifting 12000kgs 12 Ton Heavy Fork Lift Truck

FD120 3000mm Mast lifting 12000kgs 12 Ton Heavy Fork Lift Truck
FD120 3000mm Mast lifting 12000kgs 12 Ton Heavy Fork Lift Truck FD120 3000mm Mast lifting 12000kgs 12 Ton Heavy Fork Lift Truck

Large Image :  FD120 3000mm Mast lifting 12000kgs 12 Ton Heavy Fork Lift Truck

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: ISO, CE
Model Number: FD120
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD43,478.00~USD50,724.00 unit
Packaging Details: 40HQ containers
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100 units per month
Detailed Product Description
Rated Load: 12000 Kgs Mast Lifting Height: 3000mm
Wheel Base: 2950mm Service Weight: 16000kgs
Engine: Yuchai Or CUMMINS Color: Orange Red,customized
OEM: Customized Warranty: One Year Or 2000 Working Hours
Load Center: 600mm Fork Size: 1600X180X90mm
Options: Full Cabin With A/C, Fork Positioner, Side Shift Attachments: Fork, Roll Prong, Bale Clamp, Tire Clamp
Highlight:

FD120 Four Wheel Forklift

,

FD120 3000mm Forklift

,

3000mm 12t Forklift

FD120 Rated Load 12000kgs Heavy Fork Lift Truck For Sale



You Can select Chinese Yuchai engine or Cummins engine, hydraulic transmission, standard configuration is wide view overhead guard,

can option full cabin with A/C, besides fork, also can match different attachments such as roll prong, bale clamp, roll clamp etc according to your detail working conditions. quality forklift, competitive price , perfect service.



Parameters:  Vehicle configuration   FD120
Performance Rated load   12000
Load center   600
Mast tilt angle (front/rear) º 6/12
Overall dimensions Length mm 6130
Width mm 2230
Height mm 2940
Mast lifting height mm 3000
Fork size (L*W*H) mm 1600X180X90
Min. turning radius mm 4350
Max. travel speed (with load) Km/h 23
Lifting speed (with load) mm/s 220
Gradeability (with load) % 20
Weight Kg 16000
Tyre Front   4X11.00-20/18PR
Rear   2X10.00-20/18PR
Wheel tread Front mm 1630
Rear mm 1780
Wheelbase mm 2950
Min. ground clearance mm 300
Engine Model   YC6J150-T301
Rated power KW 110
Max. torque N.m 600

Note: the above data are subject to change without prior notice.



Main features of heavy lift forklift:

Engine: Adopt Cummins or Yuchai turbocharging engine, powerful, energy conservation,environmental protection, satisfies the requirement of high efficiency operation.
Transmission & torque converter: Use hydraulic power shift transmission, big traction in combined operating condition, the transmission system is more reliable . Adopt double turbine hydraulic torque converter , single lever control for the speed changing, easier for operation.
Driven axle: Reinforced heavy duty type driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.

Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.

Braking system: Use four heavy caliper disc brake, thicken brake disc, the rear air tank. especially have very good thermostability performance when heavy loaded, braking effect stable. heat dissipation faster, reliable and safe operation.

Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.

Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance

Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.

Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse and longitudinal stability of forklifts. The forklifts get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge and frame.

Tyre: Sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded ,safe and reliable.

Mast: Box-type internal-external mast, special all-round roller bearings, increase lifting performance.

Overhead guard or Cab: Strong roof guard or full cabin with air-conditioning , wide view and comfortable seats, flexible control.

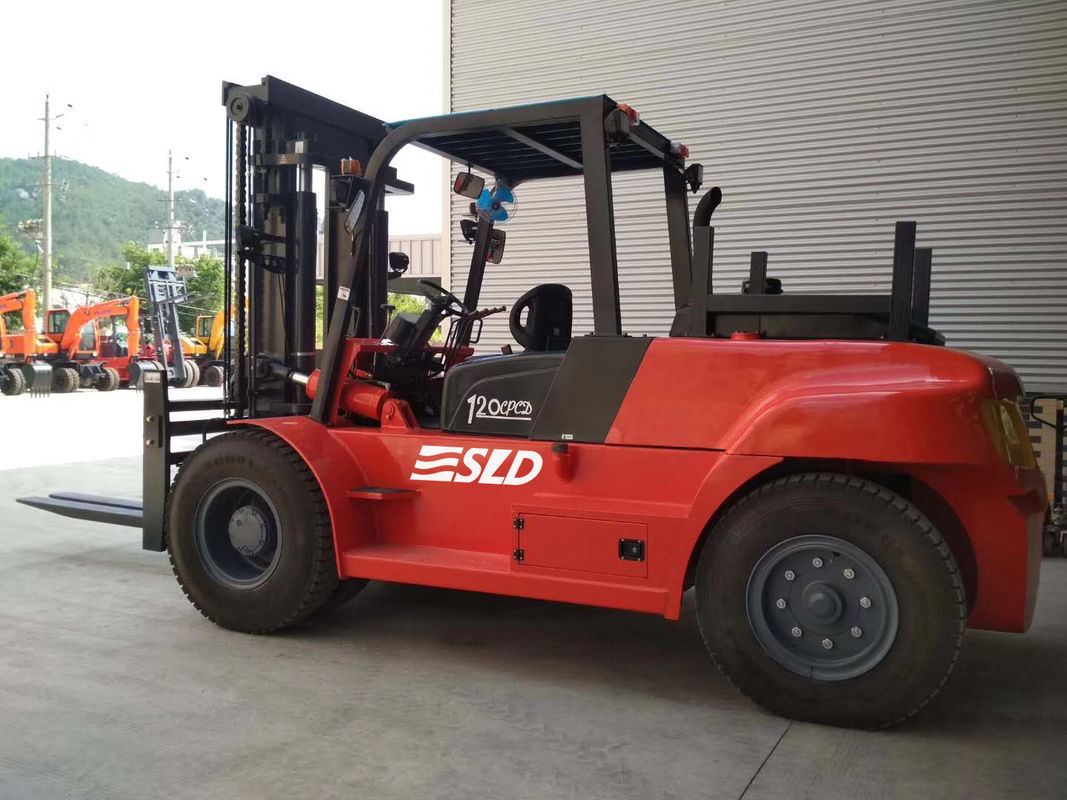

FD120 3000mm Mast lifting 12000kgs 12 Ton Heavy Fork Lift Truck 0

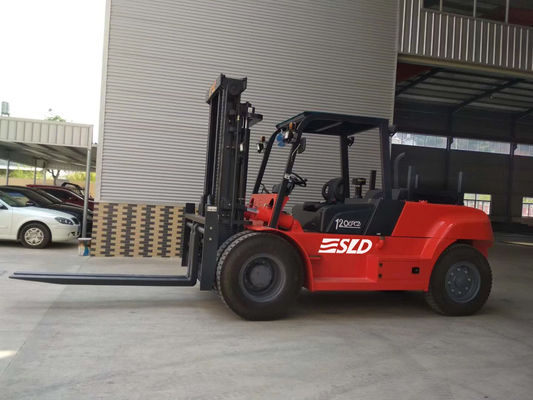

FD120 3000mm Mast lifting 12000kgs 12 Ton Heavy Fork Lift Truck 1
