High Rise 20 ton 44k Counterbalance Fork Truck With Cabin A C

High Rise 20 ton 44k Counterbalance Fork Truck With Cabin A C
High Rise 20 ton 44k Counterbalance Fork Truck With Cabin A C High Rise 20 ton 44k Counterbalance Fork Truck With Cabin A C High Rise 20 ton 44k Counterbalance Fork Truck With Cabin A C High Rise 20 ton 44k Counterbalance Fork Truck With Cabin A C

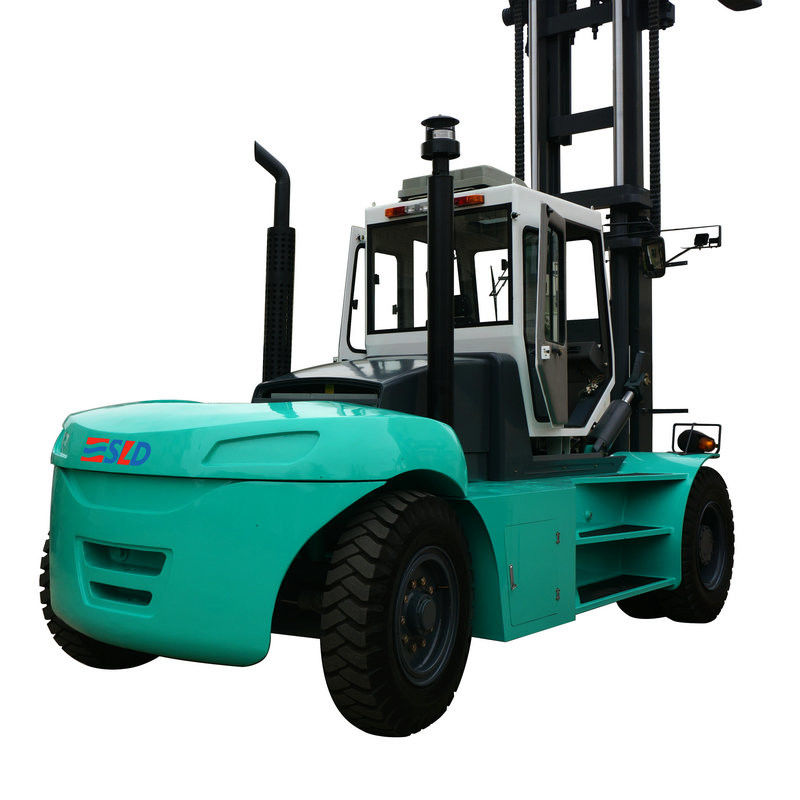

Large Image :  High Rise 20 ton 44k Counterbalance Fork Truck With Cabin A C

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: ISO, CE
Model Number: FD200
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD108,695.00 Unit
Packaging Details: Flat rack container
Delivery Time: 30 working days
Payment Terms: T/T, L/C
Supply Ability: 50 units per month
Detailed Product Description
Color: Blue, Green, Customized New Or Used: New
Performance: Quality Product OEM: Customized
Highlight:

44k Counterbalance Fork Truck

,

Counterbalance Forklift

,

Counterbalance Reach Truck

Counterbalance Forklift Loading Capacity 20000kgs Heavy Lift Forklift With Full Cabin A/C CUMMINS Engine



Parameters:  Vehicle configuration   FD200
Performance Rated load   20000
Load center   900
Mast tilt angle (front/rear) º 6/12
Overall dimensions Length mm 8000
Width mm 2550
Height mm 3480
Mast lifting height mm 3500
Fork size (L*W*H) mm 2200X220X100
Min. turning radius mm 5600
Max. travel speed (with load) Km/h 26
Lifting speed (with load) mm/s 260
Gradeability (with load) % 20
Weight Kg 25000
Tyre Front   4X14.00-24/20PR
Rear   2X12.00-20/20PR
Wheel tread Front mm 1850
Rear mm 2130
Wheelbase mm 4050
Min. ground clearance mm 270
Engine Model   WP10G220E21
Rated power KW 162
Max. torque N.m 786

Note: the above data are subject to change without prior notice.



Main features:
Engine: Adopt Cummins or Weichai turbocharging engine, powerful, energy conservation,environmental protection, satisfies the requirement of high efficiency operation.
Transmission & torque converter: Use hydraulic power shift transmission, big traction in combined operating condition, the transmission system is more reliable.
Adopt double turbine hydraulic torque converter , single lever control for the speed changing, easier for operation.
Driven axle: Reinforced heavy duty type driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Braking system: Use four heavy caliper disc brake, thicken brake disc, the rear air tank. especially have very good thermostability performance when heavy loaded, braking effect stable. heat dissipation faster, reliable and safe operation.
Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.
Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse and longitudinal stability of forklifts. The forklifts get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge and frame.
Tyre: Sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded ,safe and reliable.
Fork: Use Cascade Fork, with hydraulic fork positioner and side shift, easy operation and reduce drivers’ labor intensity.
Mast: Box-type internal-external mast, special all-round roller bearings, increase lifting performance.
Cab: With air-conditioning , and rupture membrane, explosion proof, heat insulation, prevent glare, sound insulation,damping luxury cab with sunroof, wide view and comfortable seats, flexible control.Note: the above data are subject to change without prior notice.

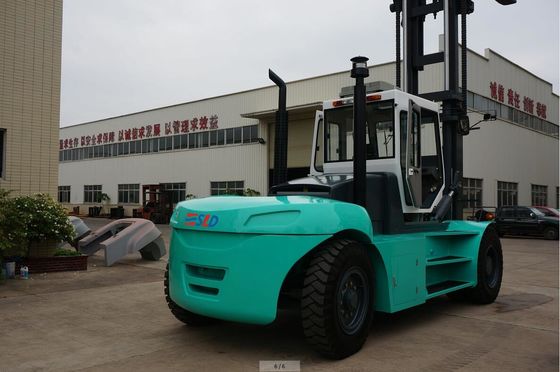

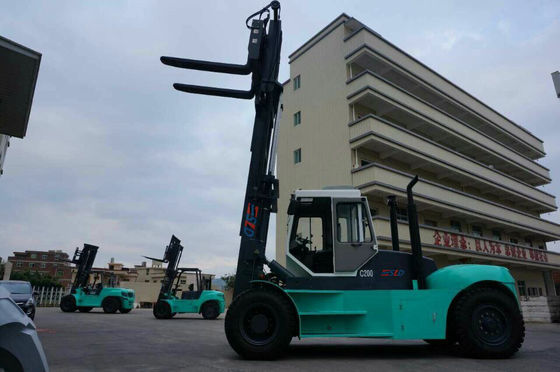

High Rise 20 ton 44k Counterbalance Fork Truck With Cabin A C 0

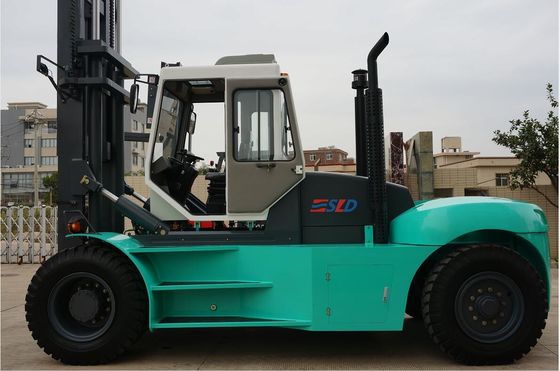

High Rise 20 ton 44k Counterbalance Fork Truck With Cabin A C 1
