Product Details:
Payment & Shipping Terms:
|
| Rated Load In Main Hook: | 10000kgs | Operating Weight: | 13000kgs |
|---|---|---|---|
| Max. Lifting Height Of The Main Hook (mm): | 7605mm | Max. Lifting Height Of The Complete Arm (mm): | 10300mm |
| Wheelbase: | 3050mm | Min. Turning Radius: | 4300mm |
| Engine: | CUMMINS | Engine Power: | 93kw |
| Color: | Orange Red, Customized | New Or Used: | New |
| Highlight: | Mine Telehandler Telescopic Forklift,20k reach forklift,SLD1100 10t telescopic loader |
||

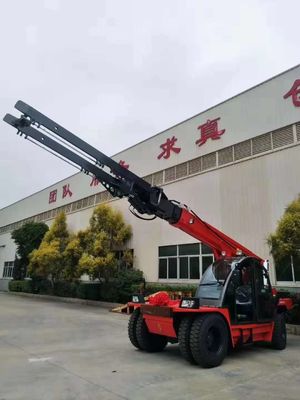

10 Ton Telehandler Telescopic Forklift SLD1100 Rated Load 10000kgs Crane Handler Use In Stone Mine
Main Features:
1, This product integrates advanced technology of forklift truck and rough terrian forklift, specially use in stone enterprise, industrial and mining enterprise, cargo handling, short-distance transport, cargo yard in the port, warehouse and station.
2, The famous brand engine match reliable gearbox, which make full use of engine power, greatly reduce fuel consumption, save cost for users.
3, It adopts the front axle four wheel driving, which improve the load capacity of front axle, safer.
4, The horizontal oil cylinder provides steering of the rear axle. The steering angle is large, it reduces the Min.turning radius of the whole machine, and makes passing performance of truck better. It’s suitable for working in a limited space. It’s flexible steering. Which improve the operating efficiency of the whole machine.
5, The frame is welded by integral frame. The frame is high strengthen and safe. The installation of each component is rationally arranged in the form of forklift truck chassis. The spacious tool box is convenient for users to put spreader and rope tools. Which makes the appearance of vehicle rationalized and regularized.
6, The material of telescopic arm is made of imported steel. The structure of arm is welded in the form of hexagon to improve the arm stricture strength.
7, The folding fork can provide a wider field of vision and make users drive more flexibly and conveniently when no need folding or lifting cargo.
8, The control system of work device is using one operation handle for two control models to reduce the trouble of multi-lever. And the operaiton is more convenient and flexible.
9, The main hydraulic components are imported, which make the whole machine more stable and safer.
SLD1100 Parameters:
| Item | Specification | Remarks |
| Rated load (kg) | 10000 | In main hook |
| Operating weight(kg) | 13000 | |
| Max. Lifting height of the main hook (mm) | 7605 | Distance from the main hook to the ground |
| Max. lifting height of the complete arm (mm) | 10300 | Front point hoist |
| Wheel base (mm) | 3050 | |
| Front tread (mm) | 1600 | |
| Rear tread (mm) | 1650 | |
| Min. groud clearance (mm) | 310 | |
| Overall length (mm) | 5288 | Without hook |
| Overall width (mm) | 2310 | |
| Overall height (mm) | 2715 | |
| Height of the cab (mm) | 2400 | |
| Length of rear overhang (mm) | 1055 | |
| Max. outreach of the main hook (mm) | 4710 | Horizontal direction |
| Max. outreach of the complete arm (mm) | 8000 | Horizontal direction |
| Tipping angle of hook, up/down (°) | 22°/24° | |
| Tipping angle of big arm, up/down (°) | 14°/43° | |
| Min. turning radius (mm) | 4300 | |
| Max. gradeability (°) | ≥20% | |
| Max. travelling speed (Km/h) | 25 | |
| Front tyre | 11.00-20 | 4pcs |
| Rear tyre | 9.00-20 | 2pcs |
| Engine | Model | DF CUMMINS 4BTA3.9-C125 |
| Engine power | KW | 93 |
| If with fork, then the load capacity will be 5t | ||
