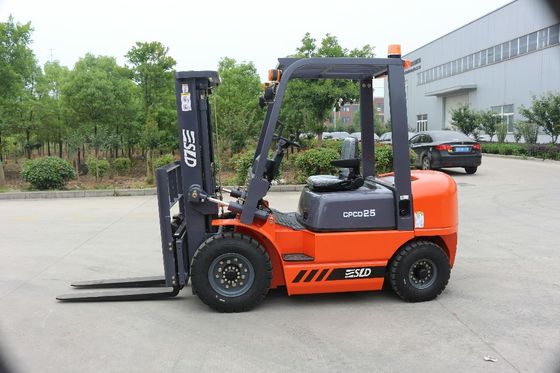

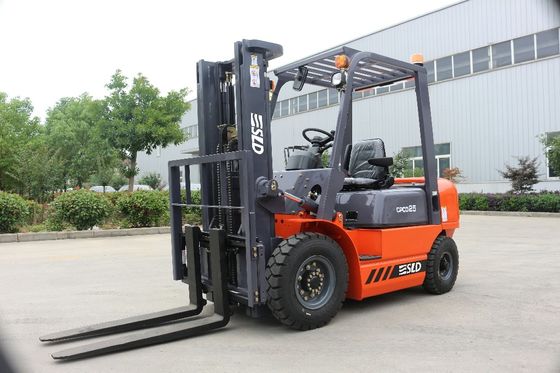

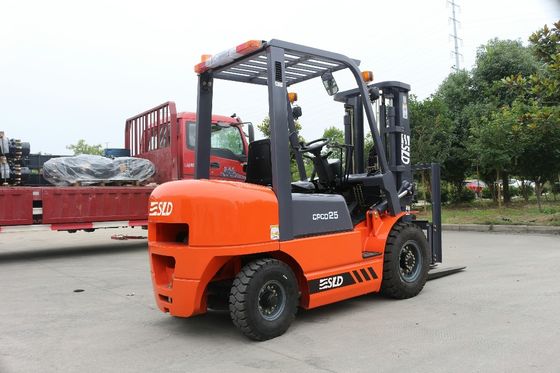

2 Stage/3 Stage 1070x120x40mm Fork Size 2.5tons Diesel Forklift Truck

2 Stage/3 Stage 1070x120x40mm Fork Size 2.5tons Diesel Forklift Truck
2 Stage/3 Stage 1070x120x40mm Fork Size 2.5tons Diesel Forklift Truck 2 Stage/3 Stage 1070x120x40mm Fork Size 2.5tons Diesel Forklift Truck 2 Stage/3 Stage 1070x120x40mm Fork Size 2.5tons Diesel Forklift Truck

Large Image :  2 Stage/3 Stage 1070x120x40mm Fork Size 2.5tons Diesel Forklift Truck

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: ISO, CE
Model Number: FD20
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Nude
Delivery Time: 15 working days
Payment Terms: T/T, L/C
Supply Ability: 300 units per month
Detailed Product Description
Power Type: Diesel Load Center: 500mm
Lift Height: 3000mm Service Weight: 3560mm
Fork Size: 1070x120x40mm Engine: ISUZU Or YANMAR
Transmission: Hydraulic Mast: 2 Stage/3 Stage
High Light:

2 Stage Diesel Forklift Truck

,

1070x120x40mm Diesel Forklift Truck

,

2.5t Diesel Powered Forklift

2 Stage/3 Stage 1070x120x40mm Fork Size 2.5tons Diesel Forklift Truck



Main configuration: Japan ISUZU C240PKJ engine , hydraulic transmission, standard 2 stage mast lifting height 3000mm, fork length 1070mm, pneumatic tires, overhead guard, warning light etc.



2.0Ton 2.5 Ton Diesel Forklift

Easy access to engine and transmission due to applied bolt type fastened front plate, greatly improving the convenience of daily maintenance and repair.

All  forklift are with strong Power System.with reliable power accessories. All accessories like engine, gear box are support by world famous brand, with high quality, reliable after-sales.We strictly follow the environmental requirement, all engines match the China Ⅲ or even higher emission standards.And  forklifts are all with comfortable driving space,adjustable steering wheel and seats,super low and non-slip step,suspension steering axle,storing space,and convenient LCD panel.

Whole perspective mast and backrest, super good view,high strength overhead guard,high place security combination lamp,neutral security features,parking brake,fork lock function(optional),all for safety.



Advantage


1.all engines match the China, Japan ISUZU C240 PKJ , Japan YANMAR and USA CUMMINS engine

2. Germany suspension seat with safety belt ,TCM brand technology gear box with auto transmission.

3.option : side shift , fork positioner , Solid tyre , forklift attachment like paper roll clamp , push pull . bale clamp and so on .





Manufacturer   Rum
Model   FD20 FD25 FD30 FD35
Rated capacity kg 2000 2500 3000 3500
Load center mm 500
Gearbox change speed type   Hydraulic/ Mechanical
Power type   Diesel
Tire type Front/ Rear   Pneumatic
Wheels Front Rear   2/2
Lift height mm 3000
Free lift height mm 140 145
Fork size L*W*T mm 1070x120x40 1070x120x45 1070x125x45 1070x130x45
Mast tilt angle Fwd/Bwd deg 6/12
Overall length (without fork) mm 2510 2580 2720 2775
Overall width mm 1150 1225
Mast height fork lowered mm 2050 2080 2230
Overall height fork raised mm 4040 4272
Overall height (overhead guard) mm 2060 2090
Turning radius (outside) mm 2170 2240 2460 2540
Load distance (centerline of front axle to front face of forks) mm 484 489 494 500
Max.Gradeability   % 20 15
Self weight kg 3550 3880 4380 4750



2 Stage/3 Stage 1070x120x40mm Fork Size 2.5tons Diesel Forklift Truck 0

2 Stage/3 Stage 1070x120x40mm Fork Size 2.5tons Diesel Forklift Truck 1



FAQ

Q1: How long is the Warranty for product?
A1: We provides 24 months or 2500 hours for the whole machine from on board time.

Q2: How about the delivery time?
A2: Usually RUMLIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.

Q3: How about the continuous working time for the electric series forklifts & Stackers ? And How long time to charge the battery full ?

A3: RUMLIFT battery continuous working time is around 4-6hours( depend on battery volume and people operation ), when the red light of dashboard flashing ,need to charging ,about 5 hours can be finish ,RUMLIFT'S charge is intelligent,once the battery is full , will stop to charging .

Q4 How about the battery working life ?
A4: our Battery is from DIN standard battery ( Germany technology), can be working 6 years without any problem.

Q5: Can RUMLIFT provide customized products? OEM products or ODM products?
A5: Yes, RUMLIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.

Q6: What's the specification of the chargers?
A6: Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases,50/60HZ). Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.
