Product Details:
Payment & Shipping Terms:
|
| Power Type: | Diesel | Engine: | ISUZU |
|---|---|---|---|
| Transmission: | Hydraulic | Overall Dimension(without Fork): | 3245x1430x2270mm |
| Service Weight: | 6480mm | Rated Load: | 4000kgs |
| Load Center: | 500mm | Lift Height: | 3000mm |
| Wheelbase: | 2100mm | Fork Size: | 1070x150x55mm |
| High Light: | FD40 Hydraulic diesel operated forklift,FD40 diesel operated forklift 4Ton,FD40 Forklift Truck |
||

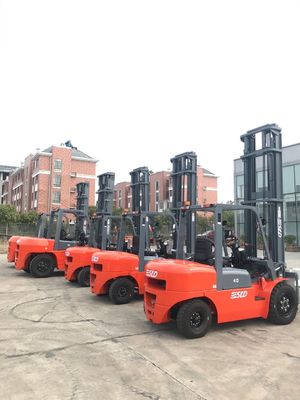

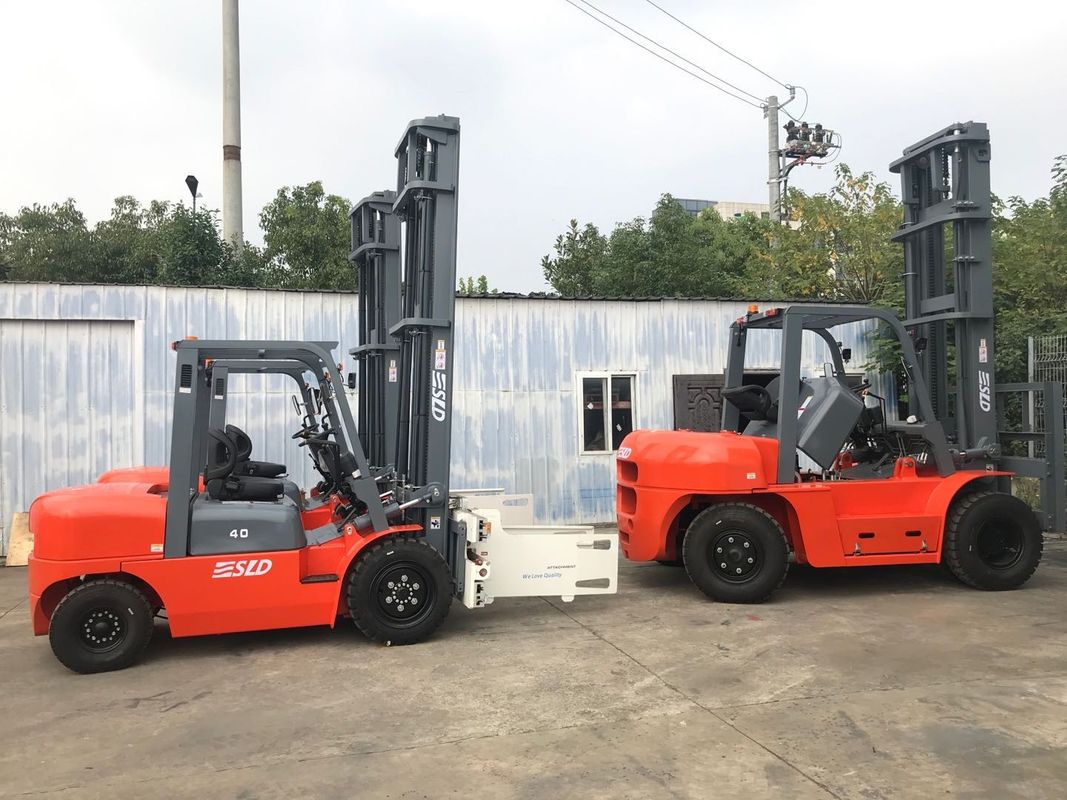

4.0 Ton Diesel Forklift Forklift With Hydraulic Transmission With Bale Clamp
Description
4.0T diesel forklift truck is well known for its good stability and flexible utility. It is usually used to lift and stack cargoes in the outdoors. Compared to gasoline engine, diesel engine possesses better power performance and low fuel charge. The engine is not easy to flame out even at low speed. It owns strong overload capacity and long-term working capacity.Our 4.0T diesel forklift trucks adopt DACHAI, YANMAR, MITSUBISHI and ISUZU engines with excellent hydraulic system. They have been proved to be economic, powerful, safe, durable and reliable.
|
General |
|
|
|
|
|
|
Model |
|
FD40T |
FD45 |
FD50 |
|
|
Power Type |
|
Diesel |
Diesel |
Diesel |
|
|
Load Capacity |
kg |
4000 |
4500 |
5000 |
|
|
Load centre |
mm |
500 |
500 |
500 |
|
|
Tyre |
|
|
|
|
|
|
Tyre |
|
|
Pneumatic Tyre |
Pneumatic Tyre |
Pneumatic Tyre |
|
Front Tyre |
|
250-15-16PR |
300-15-18PR |
300-15-18PR |
|
|
Rear Tyre |
|
6.50-10-10PR |
7.00-12-12PR |
7.00-12-12PR |
|
|
Overall Dimension |
|
|
|
|
|
|
Lift Height |
mm |
3000 |
3000 |
3000 |
|
|
Fork Size |
L×W×T |
mm |
1070×125×50 |
1070×150×55 |
1070×150×55 |
|
Mast Tilt Angle |
F/R |
. |
6/12 |
6/12 |
6/12 |
|
Mast Lowered Height |
mm |
2195 |
2330 |
2330 |
|
|
Mast Extended Height(with backrest) |
mm |
4180 |
4165 |
4165 |
|
|
Length to face of fork(Without fork) |
mm |
2890 |
3245 |
3245 |
|
|
Overall Width |
mm |
1410 |
1430 |
1430 |
|
|
Overhead Guard Height |
mm |
2120 |
2340 |
2340 |
|
